BENEFITS
• Totally waterproof - can be installed underwater
• Wide angle SMD LED used, making the light output smooth and even
• Available colors: red, green, blue, yellow, white and color changing RGB
• Maintenance free, easy installation
• Low power consumption, high intensity

APPLICATIONS
• Pools and spas - underwater applications
• Outdoor and indoor step lighting
• Construction decorative lighting
• Archway, canopy and bridge edge lighting
• Amusement park, theater and aircraft cabin mood lighting
• Emergency hallway lighting

BASIC TECHNICAL DATA
Standard length: 19.68 in (5 meters)/24 LEDs per foot
Size(LXWXH): 19.6inX.39inX.008 in (9 500X10X2.4mm)

THIN GLOW - WATERPROOF
COLOR	PART NO.	LED Q'TY	LUMINUS FLUX (LM)		VIEWING ANGLE	VOLATAGE (V)	CURRENT (MA)
			MIN.	TYP.	2 1/2
RED	IL-TG-R-WP	24	35	40	120	12	170-200
GOLD	IL-TG-A-WP	24	35	40	120	12	170-200
BLUE	IL-TG-B-WP	24	20	24	120	12	170-200
GREEN	IL-TG-G-WP	24	38	48	120	12	170-200
WHITE	IL-TG-W-WP	24	44	55	120	12	170-200
RGB	IL-TG-RGB-WP	15	11	14	100	12	85-100
			19	24			85-100
			8	9			85-100

DOWNLOAD PDF

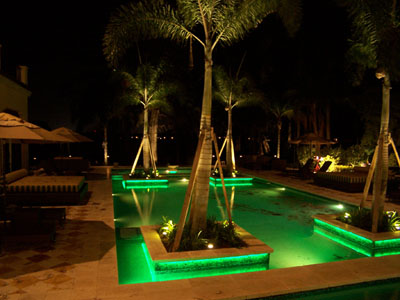

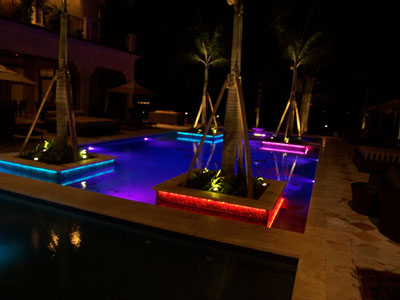

SAMPLE INSTALLATIONS
